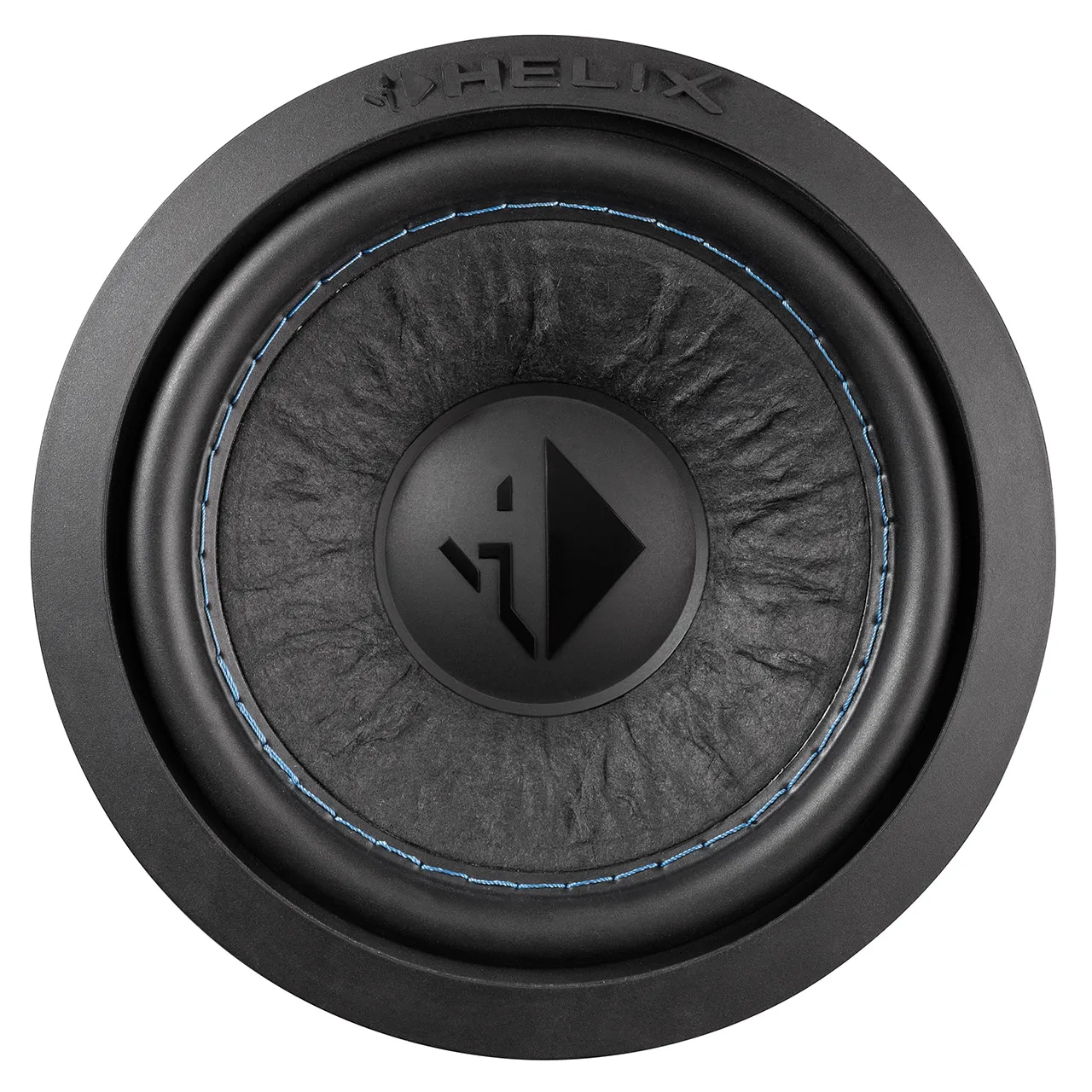

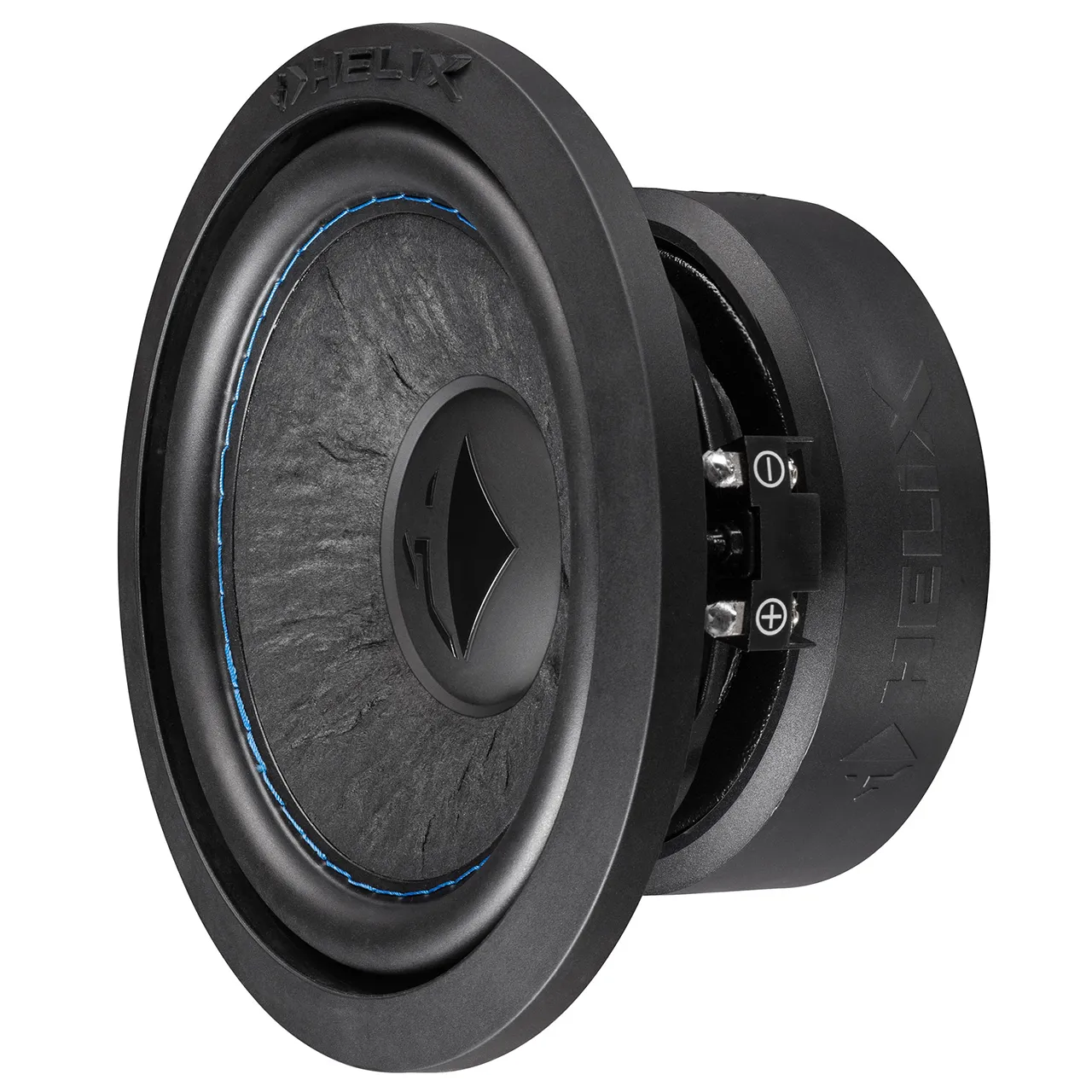

Helix IK W6-SVC2 ( 1x2Ohm )

Tuotekuvaus

• Helixin IK-sarjan 6,5" subwooferelementti joka toimii pienessä refleksikotelossa. koteloissa. Elementtiä saa 2x2 Ohmin ja 1x2 Ohmin puhekeloilla. Nämä elementit tarjoavat erittäin hyvää äänenlaatua pienestä tilasta.

---

Tekniset tiedot

• Power handling RMS / Max. P 150 / 300 Watt
• Impedance Z 1 x 2 ohm
• DC resistance Re 1 x 2.0 ohm
• Resonance frequency Fs 50 Hz
• Mechanical Q factor Qms 3.92
• Electrical Q factor Qes 0.32
• Total Q factor Qts 0.30
• Compliance Cms 261 m/N
• Equivalent air volume Vas 5.3 L
• Force factor B*I 12.3 Tm
• Sensitivity SPL 89.0 dB @ 2.83V / 1m
• 86.0 dB @ 1W / 1m
• Cone area Sd 123 cm²
• Moving mass Mms 37 g
• Cone material Hand-scooped paper cone
• Mechanical resistance Rms 3.04 kg/s
• Voice coil diameter ø 37 mm
• Voice coil winding height 18 mm
• Max. linear excursion Xmax +/- 6.0 mm
• Outer diameter ø 164.2 mm / 6.46"
• Installation diameter ø 132.5 mm / 5.22"
• Installation depth 74.3 mm / 2.93"
• Recommended enclosure
• Vented box
• Net volume 7 L
• Port diameter ø 50 mm
• Port area 20 cm²
• Port length 34 cm (angled port)
• Port tuning frequency Fb 45 Hz
• Lower limiting frequency (-3dB) 43 Hz
• Recommended DSP settings Recommended self-define highpass filter with 45 Hz cut-off frequency and Q = 1.2
• additional EQ filter 80 Hz / Q = 1.0 / +1.0 dB
• Scope of delivery
• 1 x Subwoofer HELIX IK W6-DVC2

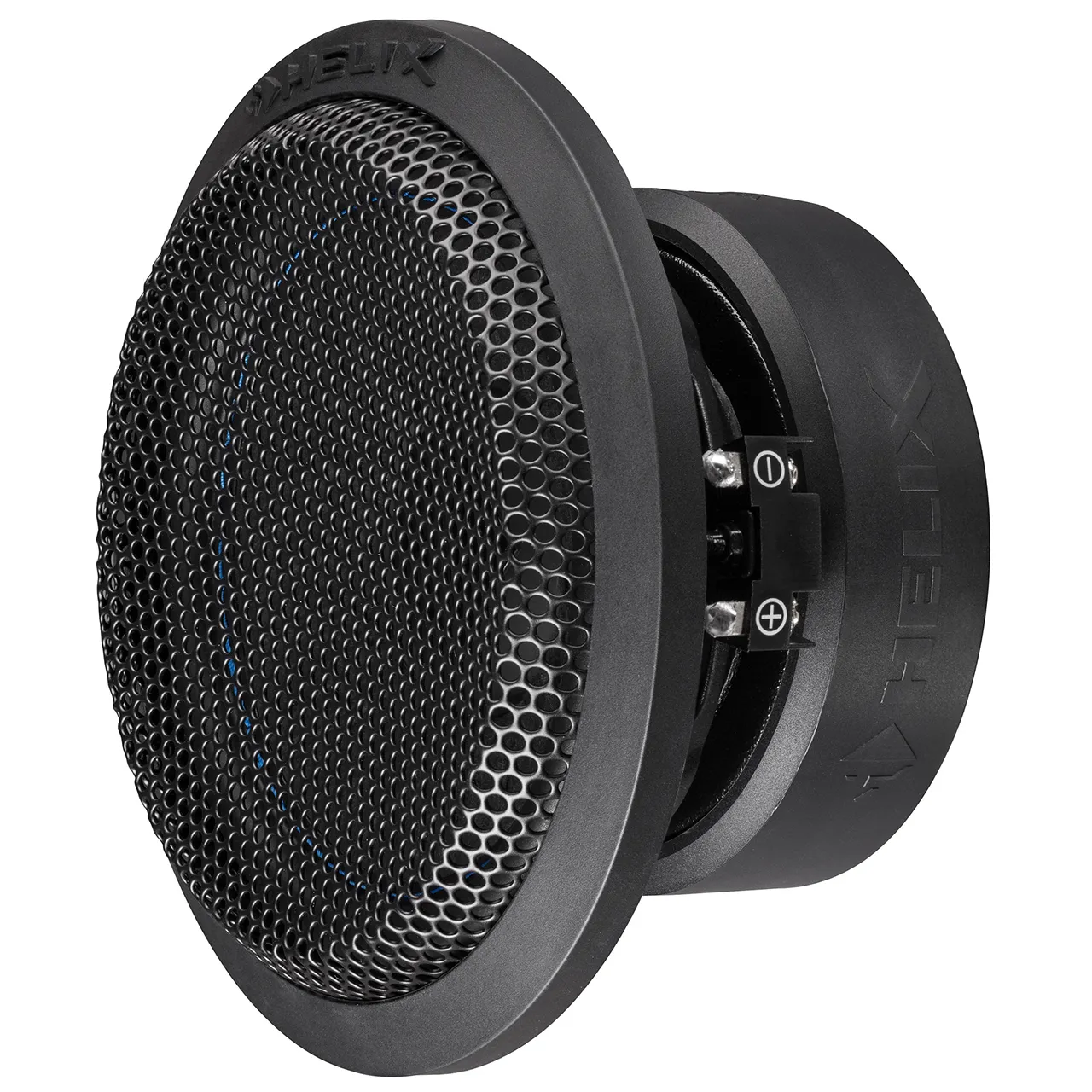

• 1 x Grille
• 1 x Gasket
• 1 x Data sheet

---
