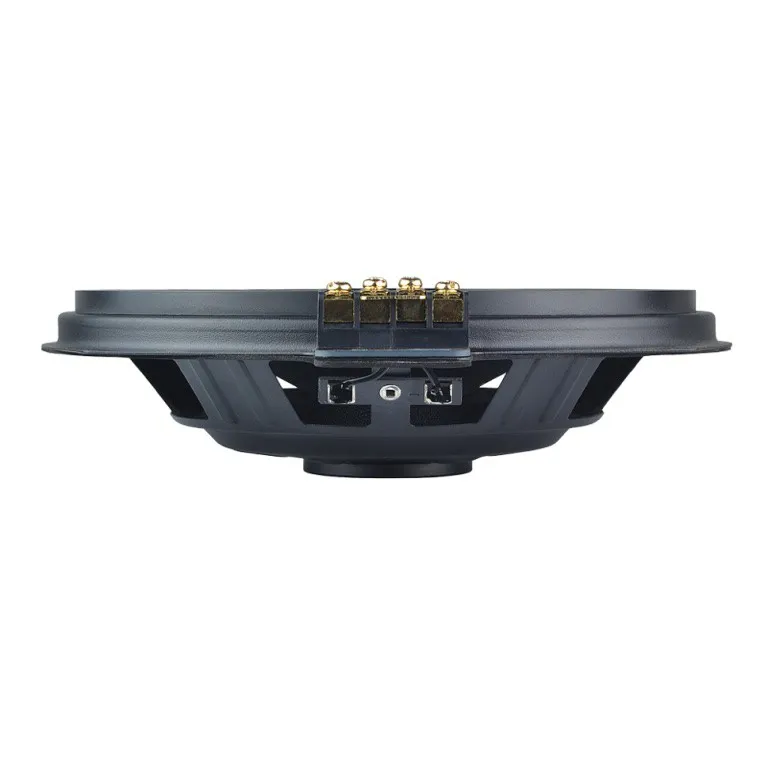

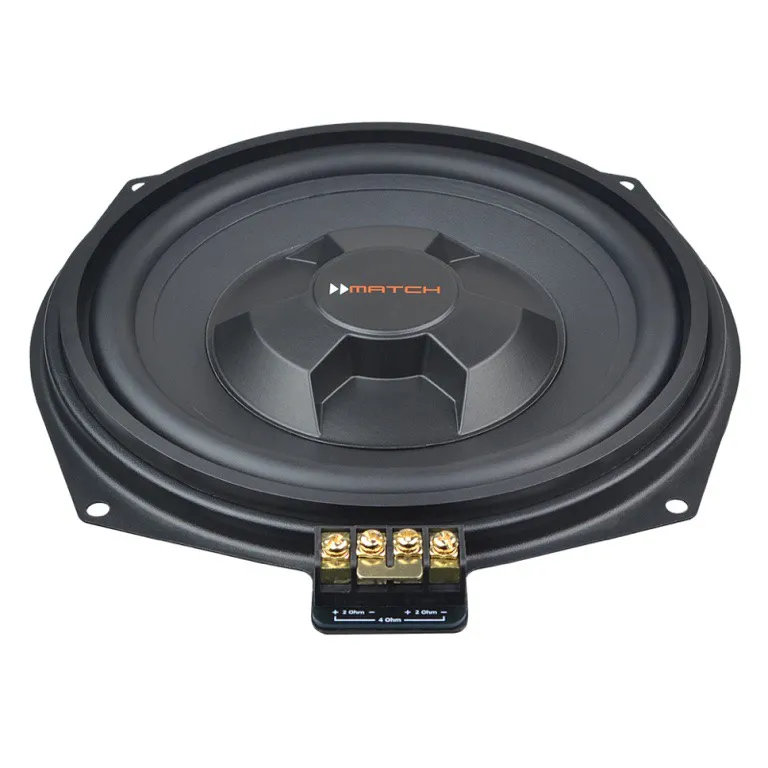

Match MW 8BMW-D

Tuotekuvaus

• 8" subwooferit jotka soveltuvat alkuperäisille paikoille etupenkkien alle
• Tehonkesto 200/400 watt,
• Impedanssi 2x2 ohm ( mahdollistaa käytettäväksi MATCH PP62DSP ja PP86DSP neljää kanavaa, tuplasti enemmän tehoa! )
• Pakkaus sisältää BMW liittimet

Tämä kaiutin soveltuu 4 ohmin impedanssin ansiosta myös BMW Top Hifi ( Harman/Kardon, Logic7, HiFi System Professional DSP ym nimet ) järjestelmiin jotka kulkevat varustekoodeilla S688A/S677A/S752A. Saat 4 ohmin impedanssin kytkemällä puhekelat sarjaan.

Yhteensopivuus:
1-series E81 3-door 2004 - 2011 penkin alle
E82 Coupe 2004 - 2011 penkin alle
E87 5-door 2004 - 2011 penkin alle
E88 Convertible 2004 - 2011 penkin alle
F20 5-door 2011 - penkin alle
F21 3-door 2011 - penkin alle

2-series F22 Coupe 2011 - penkin alle
F23 Convertible 2011 - penkin alle

3-series E90 Sedan 2005 - 2011 penkin alle
E91 Touring 2005 - 2011 penkin alle
E92 Coupe 2005 - 2011 penkin alle
E93 Convertible 2005 - 2011 penkin alle
F30 Sedan 2012 - penkin alle
F31 Touring 2012 - penkin alle
F34 Gran Turismo 2013 - penkin alle
F35 Sedan Long Version 2012 - penkin alle

4-series F32 Coupe 2014 - penkin alle
F33 Convertible 2014 -

5-series E60 Sedan 2003 - 2010 penkin alle
E61 Touring 2003 - 2010 penkin alle
F10 Sedan 2011 - penkin alle
F11 Touring 2011 -penkin alle

6-series F12 Convertible 2011 - penkin alle
F13 Coupe 2011 - penkin alle

7-series F01 Sedan 2008 - penkin alle

X1 E84 SUV 2009 - 2012 penkin alle

X3 E83 SUV 2003 - 2010 penkin alle
F25 SUV 2010 - penkin alle

X4 F26 SUV 2014 - penkin alle

X5 E70 SUV 2006 - 2013 penkin alle

X6 E71 SUV 2008 - penkin alle

---

Tekniset tiedot

• Power RMS / max. P 200 / 400 Watts
• Impedance Z 2 x 2 ohm
• DC resistance Re 3.4 ohm
• Resonance frequency Fs 46 Hz
• Mechanical Q factor Qms 4.45
• Electrical Q factor Qes 0.59
• Total Q factor Qts 0.52
• Compliance Cms 272 µm/N
• Equivalent air volume Vas 17.3 L
• Force factor B*I 8.6 Tm
• Efficiency 1 W / 1 m SPL 90 dB
• Cone area Sd 214 cm²
• Moving mass Mms 44.2 g
• Cone material Hand-scooped paper cone
• Mechanical resistance Rms 0.74 kg/s
• Voice coil diameter ø 42.5 mm
• Voice coil winding height Handgeschöpfte Papiermembran
• Max. linear excursion Xmax +/- 4.0 mm
• Outer diameter ø 239 mm / 9.41"
• Installation diameter ø 175 mm / 6.89"
• Installation depth 40 mm / 1.57"
• Recommended enclosure volumes
• Sealed box
• Net volume 3 L
• Lower limiting frequency (-3dB) 63 Hz
• DSP settings - Highpass: Butterworth 12 dB/octave crossover frequency 40 Hz
• - Additional EQ filter: center frequency 90 Hz Q factor 3.0 gain -4 dB
• - Lowpass: Butterworth 24 dB/octave crossover frequency 80 - 100 Hz
• Vented box For one subwoofer For two subwoofers
• Net volume 12 L 24 L
• Port diameter ø 60 mm / 2.36" 80 mm / 3.15
• Port area 28 cm² 50 cm²
• Port length 25 cm / 9.84 20 cm / 3.94"
• Port tuning frequency Fb 46 Hz 46 Hz
• Lower limiting frequency (-3dB) 45 Hz 45 Hz
• DSP settings - Highpass: Self-Define crossover frequency 40 Hz Q factor 1.3
• - Additional EQ filter: center frequency 67 Hz Q factor 3.0 gain -3 dB
• - Lowpass: Butterworth 24 dB/octave crossover frequency 80 - 100 Hz
• Compatibility:
• 1-series E81 3-door 2004 - 2011 Under-seat
• E82 Coupe 2004 - 2011 Under-seat
• E87 5-door 2004 - 2011 Under-seat
• E88 Convertible 2004 - 2011 Under-seat
• F20 5-door 2011 - Under-seat
• F21 3-door 2011 - Under-seat
• 2-series F22 Coupe 2011 - Under-seat
• F23 Convertible 2011 - Under-seat
• 3-series E90 Sedan 2005 - 2011 Under-seat
• E91 Touring 2005 - 2011 Under-seat
• E92 Coupe 2005 - 2011 Under-seat
• E93 Convertible 2005 - 2011 Under-seat
• F30 Sedan 2012 - Under-seat
• F31 Touring 2012 - Under-seat
• F34 Gran Turismo 2013 - Under-seat
• F35 Sedan Long Version 2012 - Under-seat
• 4-series F32 Coupe 2014 - Under-seat
• F33 Convertible 2014 -
• 5-series E60 Sedan 2003 - 2010 Under-seat
• E61 Touring 2003 - 2010 Under-seat
• F10 Sedan 2011 - Under-seat
• F11 Touring 2011 - Under-seat
• 6-series F12 Convertible 2011 - Under-seat
• F13 Coupe 2011 - Under-seat
• 7-series F01 Sedan 2008 - Under-seat
• X1 E84 SUV 2009 - 2012 Under-seat
• X3 E83 SUV 2003 - 2010 Under-seat
• F25 SUV 2010 - Under-seat
• X4 F26 SUV 2014 - Under-seat
• X5 E70 SUV 2006 - 2013 Under-seat
• X6 E71 SUV 2008 - Under-seat.

---
