MATCH PP 72W-D

Tuotekuvaus

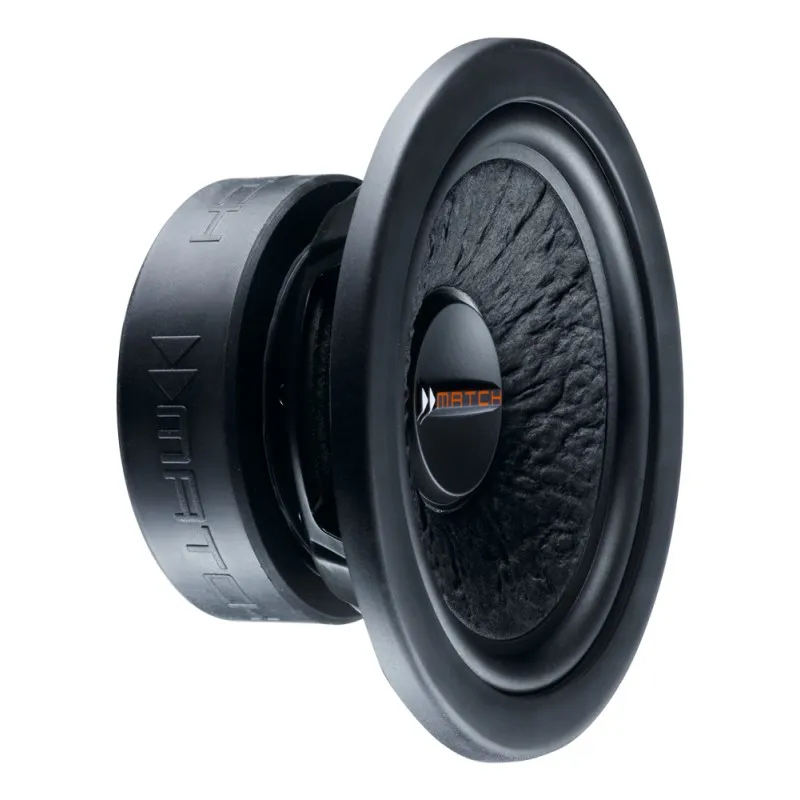

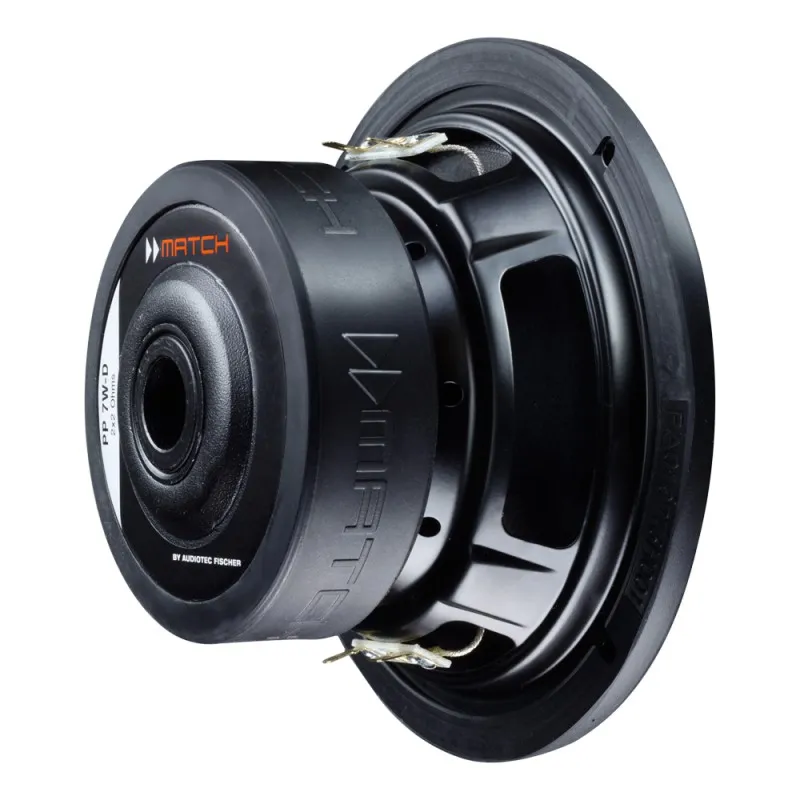

• Paketissa on kaksi tuplapuhekelaista 6.5" subwooferia, jotka on suunniteltu asennettavaksi Match PP 62DSP tai Match PP 86DSP vahvistimen kanssa.

---

Tekniset tiedot

• Power RMS / max. P 100 / 200 Watts
• Impedance Z 2 x 2 ohm
• DC resistance Re 2 x 1.6 ohm
• Resonance frequency Fs 53 Hz
• Mechanical Q factor Qms 3.30
• Electrical Q factor Qes 0.41
• Total Q factor Qts 0.37
• Compliance Cms 350 µm/N
• Equivalent air volume Vas 7.9 L
• Force factor B*I 8 Tm
• Efficiency 1 W / 1 m SPL 87 dB
• Cone area Sd 125 cm²
• Moving mass Mms 25 g
• Cone material Hand-scooped paper cone
• Mechanical resistance Rms 2.5 kg/s
• Voice coil diameter ø 38.8 mm
• Voice coil winding height 16 mm
• Max. linear excursion Xmax +/- 5.0 mm
• Outer diameter ø 157.5 mm / 6.20"
• Installation diameter ø 133 mm / 5.24"
• Installation depth 79 mm / 3.11"
• Recommended enclosure volumes For two subwoofers
• Sealed box
• Net volume -
• Lower limiting frequency (-3dB) -
• Vented box
• Net volume 15 L
• Port diameter ø 70 mm / 2.76"
• Port area 38 cm²
• Port length 20 cm / 7.87"
• Port tuning frequency Fb 50 Hz
• Lower limiting frequency (-3dB) 48 Hz.

---
