Ortofon 2M Black LVB 250 Exclusive äänirasia

Tuotekuvaus

Ortofon 2M Black LVB on valittu EISA Phono Cartridge 2021-2022 tuotteeksi.

Ludwig van Beethovenin syntymän 250-vuotispäivän kunniaksi julkaistu Ortofon 2M Black LVB 250 Exclusive Model -äänirasia.



Tekniset tiedot:

• Output voltage at 1000 Hz, 5cm/sec. - 5 mV

• Channel balance at 1 kHz - < 1 dB
• Channel separation at 1 kHz - > 27 dB
• Channel separation at 15 kHz - 15 dB
• Frequency response - 20-20.000 + 2 / - 1 dB
• Tracking ability at 315Hz at recommended tracking force - 80 µm
• Compliance, dynamic, lateral - 22 µm/mN
• Stylus type - Nude Shibata
• Stylus tip radius - r/R 6/50 µm
• Cantilever material - Boron
• Tracking force range - 1.5-1.7 g (15-17 mN)
• Tracking force, recommended - 1.6 g (16 mN)
• Tracking angle - 20°
• Internal impedance, DC resistance - 1.2 kOhm
• Internal inductance - 630 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 150-300 pF
• Cartridge colour, body/stylus - Black/Black
• Cartridge weight - 7.2 g

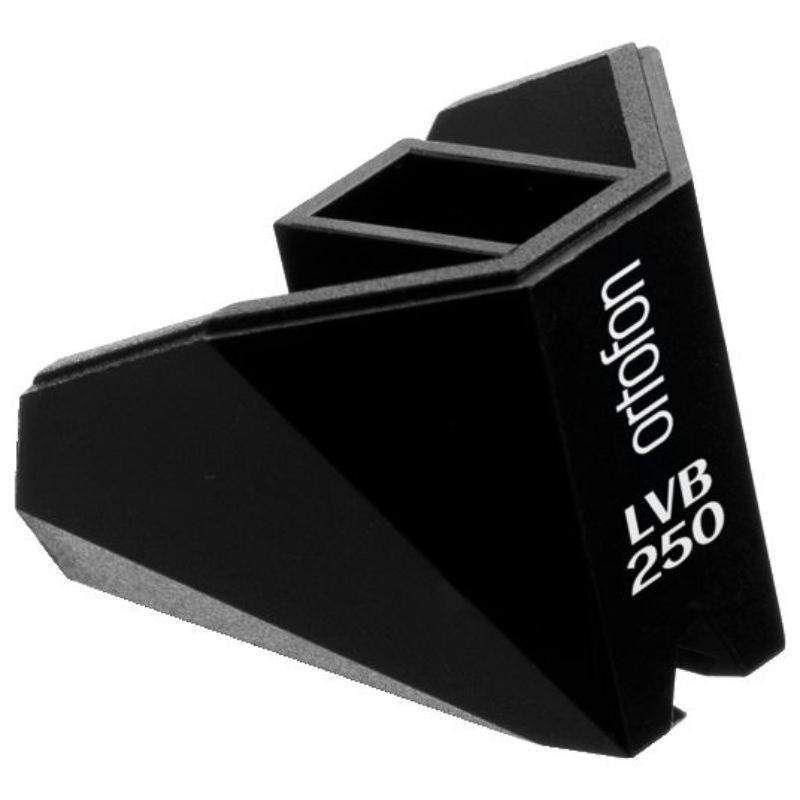

• Replacement stylus unit - 2M Black LVB 250
• Interchangeable styli units - 2M Black and 2M Bronze



---
