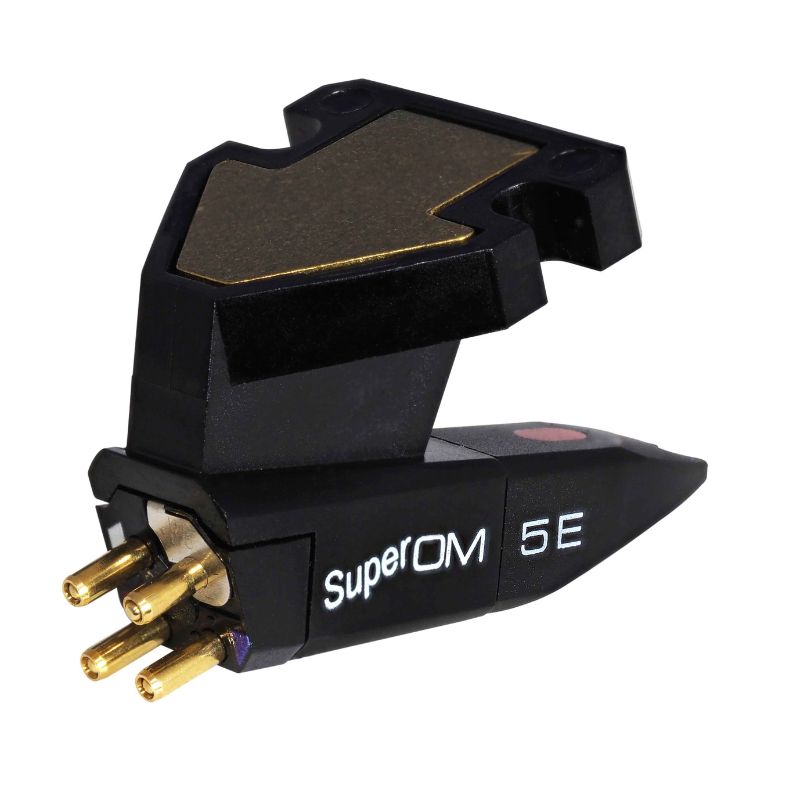

Ortofon Super OM 5E äänirasia

Tuotekuvaus

Tekniset tiedot:

• Output voltage at 1000 Hz, 5cm/sec. - 4 mV

• Channel balance at 1 kHz - 1.5 dB
• Channel separation at 1 kHz - 22 dB
• Channel separation at 15 kHz - 15 dB
• Frequency range at - 3dB - 20-25.000 Hz
• Frequency response - 20-20.000 Hz ± 2 dB
• Tracking ability at 315Hz at recommended tracking force - 65 µm
• Compliance, dynamic, lateral - 20 µm/mN
• Stylus type - Elliptical
• Stylus tip radius - r/R 8/18 µm
• Tracking force range - 1.5-2.0 g (15-20 mN)
• Tracking force, recommended - 1.75 g (17.5 mN)
• Tracking angle - 20°

• Internal impedance, DC resistance - 1 kOhm
• Internal inductance - 580 mH
• Recommended load resistance - 47 kOhm
• Recommended load capacitance - 200-500 pF
• Cartridge colour, body/stylus - Black/Black
• Cartridge weight incl. extra weight - 5 g
• Cartridge weight excl. extra weight - 2.5 g
• Replacement stylus unit - Stylus 5 E, Stylus 10





---
